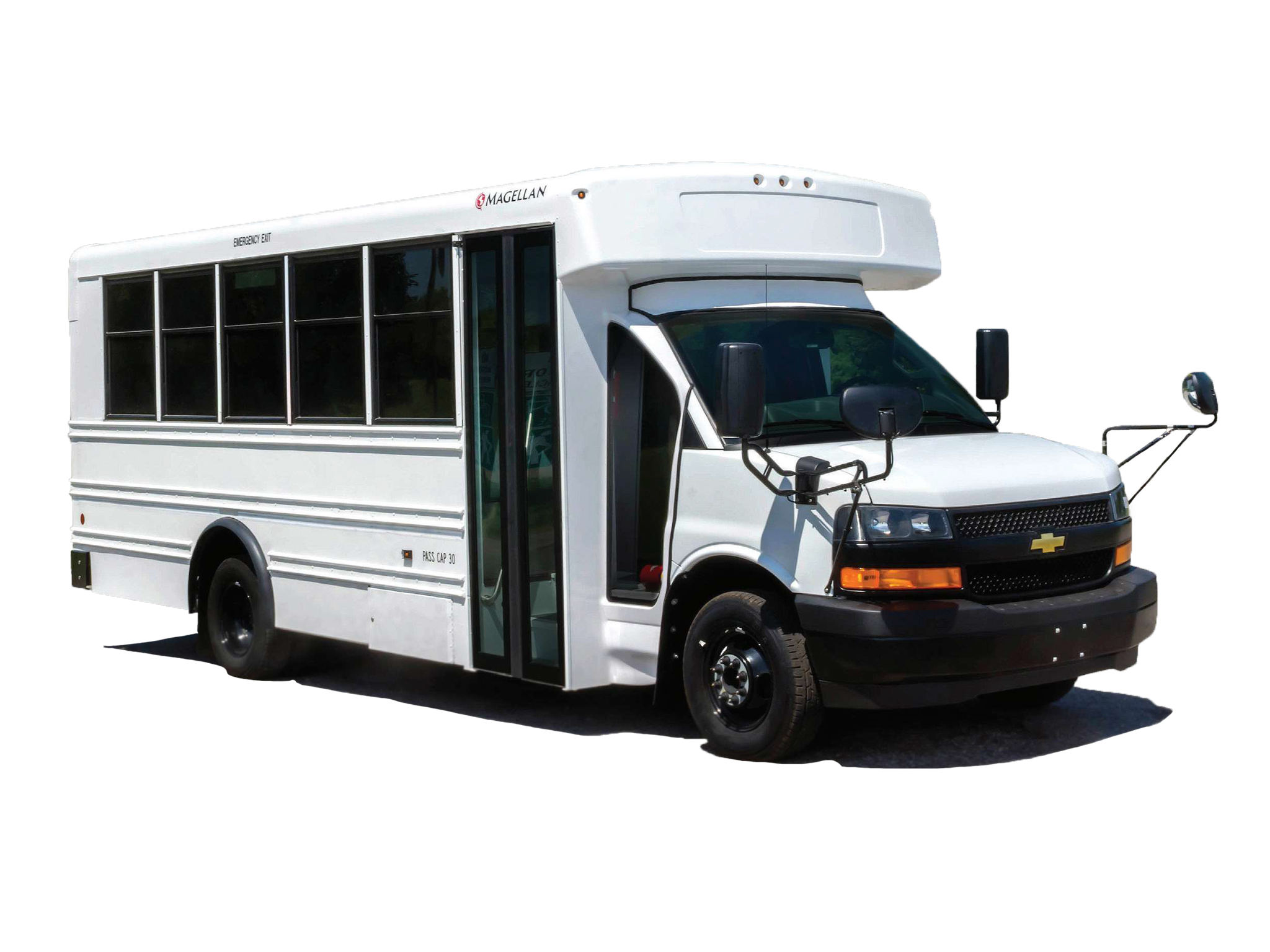

MAGELLAN BUS
Collins Bus introduced the first Type-A school bus in 1967, setting a new standard for safety and innovation in the industry. Today, the Magellan brand proudly continues that legacy of excellence by prioritizing the safety of passengers - mile after mile.
Through innovative designs and world-class manufacturing processes, Magellan is committed to delivering the industries safest, highest quality, and most dependable Type-A buses. With flexible seating configurations and superior driver visibility, Magellan products are the ideal solution for smaller-route student transportation, after-school activities, and childcare services.
FLOORPLANS
Flexibility is built in to every floorplan we design. Collins’ seating platform offers strength, safety and the option to be altered, upgraded or customized to meet any need.
Whether you’re looking for a Ford bus or a Chevy bus, Collins has the largest supply of chassis offerings waiting at Collins’ production facility for an unrivaled lead time.
MODEL |
SL400 | SH400 | DH400 | DH416 | DH500 | DH516 | DE416WR | DE516 | DE516WR | TL400 | TH400 | TH408 | TH500 | TH516WR |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chassis | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Chevy or Ford E-series Chassis ONLY | Ford Transit ONLY | Ford Transit ONLY | Ford Transit ONLY | Ford Transit ONLY | Ford Transit ONLY |
Rear-wheel | ||||||||||||||
Single-Rear Wheel(SRW) | - | - | - | - | - | - | - | - | - | |||||
Dual-Rear Wheel (DRW) | - | - | - | - | - | |||||||||
Maximum Passenger Seating | 20* | 20* | 24 | 28 | 30 | 34 | 18+1** | 32 | 24+1** | 16* | 16* | 18* | 20* | 18** |
Maximum seating rows | 4 | 4 | 4 | 5 | 5 | 6 | 5 | 6 | 6 | 4 | 4 | 4 | 5 | 5 |
Elevated floor | - | - | - | - | - | - | - | - | - | - | - | |||
Interior height (6" from side wall) | 66" | 74" | 74" | 74" | 74" | 74" | 74" | 74" | 74" | 66" | 74" | 74" | 74" | 74" |
Low-Top | - | - | - | - | - | - | - | - | - | - | - | - | ||
High-Top | - | - | ||||||||||||
Interior height at center aisle | 68" | 76" | 77" | 77" | 77" | 77" | 77" | 77" | 77" | 68" | 76" | 76" | 76" | 76" |
Interior width | 78" | 78" | 91" | 91" | 91" | 91" | 91" | 91" | 91" | 78" | 78" | 78" | 78" | 78" |
Overall Height | 102" | 110" | 111" | 111" | 111" | 111" | 115" | 115" | 115" | 102" | 110" | 110" | 110" | 110" |
Overall length with bumper | 232"/242" | 232"/242" | 232"/242" | 248"/258" | 264"/274" | 280"/290" | 248"/258" | 280"/290" | 280"/290" | 240" | 240" | 248" | 272" | 272" |
Overall width with no mirrors | 83" | 83" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 83" | 83" | 83" | 83" | 83" |
Manual entrance door | 25" x 70" | 25" x 78" | 25" x 78" | 25" x 78" | 25" x 78" | 25" x 78" | 25" x 82" | 25" x 82" | 25" x 82" | 25" x 70" | 25" x 78" | 25" x 78" | 25" x 78" | 25" x 78" |
Electric entrance door | 27" x 70" | 27" x 78" | 27" x 78" | 27" x 78" | 27" x 78" | 27" x 78" | 27" x 82" | 27" x 82" | 27" x 82" | 27" x 70" | 27" x 78" | 27" x 78" | 27" x 78" | 27" x 78" |
Wheelchair available | - | - | - | - | - | - | - | - | - | - | - |
MODEL |
E-350 Super | E-350 Super | E-350 Super | E-450 Super | T250 | T350 | T350 Heavy Duty | G3500 | G3500 | G3500 | G4500 |
---|---|---|---|---|---|---|---|---|---|---|---|
Chassis | Ford E-Series | Ford E-Series | Ford E-Series | Ford E-Series | Ford Transit | Ford Transit | Ford Transit | GM / Chevy | GM / Chevy | GM / Chevy | GM / Chevy |
Wheelbase | 138" | 138" | 158" | 158" | 138" | 156" | 156" | 139" | 139" | 159" | 159" |
Rear wheel (SRW- Single) or (DRW- Dual) |
SRW | DRW | DRW | DRW | SRW | SRW | DRW | SRW | DRW | DRW | DRW |
Engine | |||||||||||
6.8L Gas (EFI V-10) | - | - | - | - | - | - | - | ||||
305 HP @ 4,250 RPM | |||||||||||
420 Torque @ 4,000 Rpm | |||||||||||
3.7L Ti-VCT V-6 Gas | - | - | - | - | - | - | - | - | |||
275 hp @ 6,000rpm | |||||||||||
260 Torque @ 4,000 RPM | |||||||||||
3.2L Power Stroke® I-5 Turbo Diesel | - | - | - | - | - | - | - | - | |||
185 Hp @ 3,000 Rpm | |||||||||||
350 Torque @ 1,750 | |||||||||||
Vortec 4.8L Gas (SFI-V8) | - | - | - | - | - | - | - | - | - | ||
285 Hp @ 5,400 Rpm | |||||||||||
295 Torque @ 4,600 Rpm | |||||||||||
Vortec 6.0L Gas (SFI-V8) | - | - | - | - | - | - | - | ||||
342 Hp @ 5,400 Rpm | |||||||||||
373 Torque @ 4,400 Rpm | |||||||||||
Transmission | |||||||||||
6-Speed Automatic w/ HD Overdrive | |||||||||||
GVW ratings (lbs.) | 10,050 | 11,500 | 12,500 | 14,500 | 9,000 | 9,500 | 10,360 | 9,900 | 10,000 / 12,300 | 12,300 | 14,200 |
Max. Front gawr (lbs.) | 4,200 | 4,600 | 5,000 | 5,000 | 4,130 | 4,130 | 4,130 | 4,300 | 4,300/4,100 | 4,300 | 4,600 |
Axle, front (lbs.) | 4,200 | 4,600 | 5,000 | 5,000 | 4,130 | 4,130 | 4,130 | 4,300 | 4,300 | 4,300 | 4,600 |
Axle, rear (lbs.) | 6,084 | 7,800 | 8,500 | 9,600 | 5,515 | 6,000 | 7,275 | 7,500 | 7,500/8,600 | 8,600 | 9,600 |
Axle, ratio | 4.1 | 4.1 | 4.1 | 4.56 | 4.1/3.7 | 4.1/3.7 | 4.1/3.7 | 3.42 | 3.73 | 3.73 | 4.1 |
Brakes, service | |||||||||||
Power, Self Adjusting Four Wheel Disc with Four Wheel Anti- Lock | |||||||||||
Electrical | |||||||||||
Alternator | 155 Amp. (Gas) | 155 Amp. (Gas) | 155 Amp. (Gas) | 155 Amp. (Gas) | 230 Amp. (Gas) | 230 Amp. (Gas) | 230 Amp. (Gas) | 220 Amp. (Gas) | 220 Amp. (Gas) | 220 Amp. (Gas) | 220 Amp. (Gas) |
- | - | - | - | 210 Amp. (Diesel) | 210 Amp. (Diesel) | 210 Amp. (Diesel) | - | - | - | - | |
Battery | Single 650 CCA | Single 650 CCA | Single 650 CCA | Single 650 CCA | Dual 610 CCA | Dual 610 CCA | Dual 610 CCA | Dual 600 CCA | Dual 600 CCA | Dual 600 CCA | Dual 600 CCA |
- | - | - | - | Dual 760 CCA (Diesel) | Dual 760 CCA (Diesel) | Dual 760 CCA (Diesel) | - | - | - | - | |
Fuel tank | 40 - Gallon | 40 - Gallon | 40 - Gallon | 40 - Gallon | 25 - Gallon | 25 - Gallon | 25 - Gallon | 33 - Gallon | 33 - Gallon | 33 - Gallon | 33 - Gallon |
Springs -max. Capacity | |||||||||||
Front (lbs.) | - | 4,130 | 4,130 | - | 4,300 | 4,300 | - | 4,300 | 4,100 | 4,300 | 4,600 |
Rear (lbs.) - single stage | - | 5,515 | 5,515 | - | 6,084 | 6,084 | - | 6,084 | 7,500 | 8,600 | 9,600 |
Stabilizer bar, front | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
Stabilizer bar, back | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
Tires (front & rear) | LT245/75R16E | LT225/75R16E | LT225/75R16E | LT225/75R16E | LT235/65R16C | LT235/65R16C | LT245/75R16E | LT225/75R16E | LT225/75R16E | LT225/75R16E | LT225/75R16E |
Wheels, 8-hole disc | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel | 16" Steel |
SL400
SH400
DH400

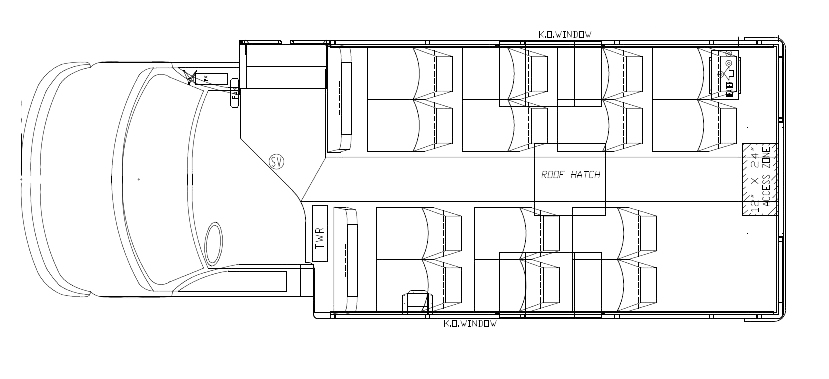

DH416
DH416WR

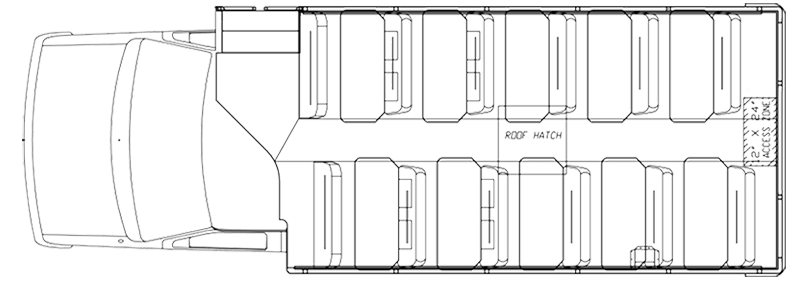

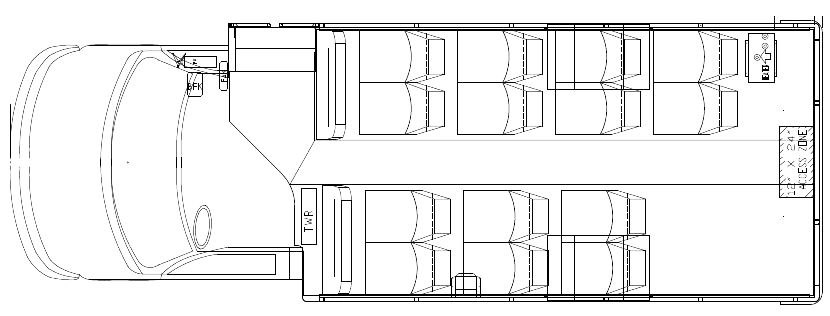

DH500
DH516
DE416WR
DE516
DE516WR
TL400
TH400

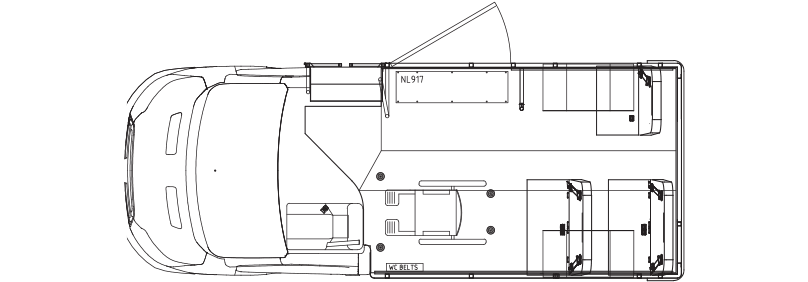

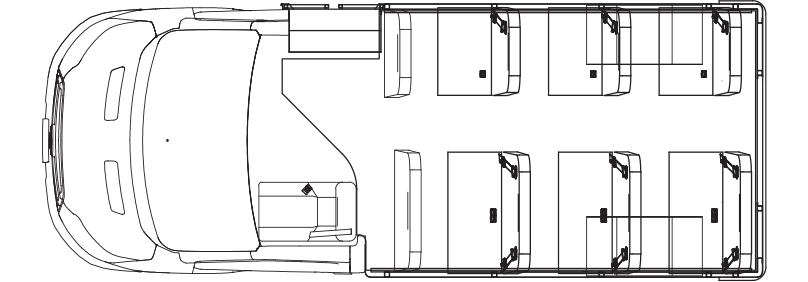

TL408
TH408
TH500
TH516WR
